The Zemic BM14D-C2-50t-20B is the 50 t capacity Zemic BM14D, a stainless steel column compression load cell with threaded studs, an anti-reversal design and good self-aligning ability, for electronic platform scales, automobile testing facilities, hopper scales, other electronic weighing devices and force measurement, manufactured in stainless steel with IP68 ingress protection.
| Manufacturer | Zemic |
| Manufacturer part number | BM14D-C2-50t-20B |
| Capacity | 50 t |
| Rated output | 1.5 ± 0.003 mV/V |

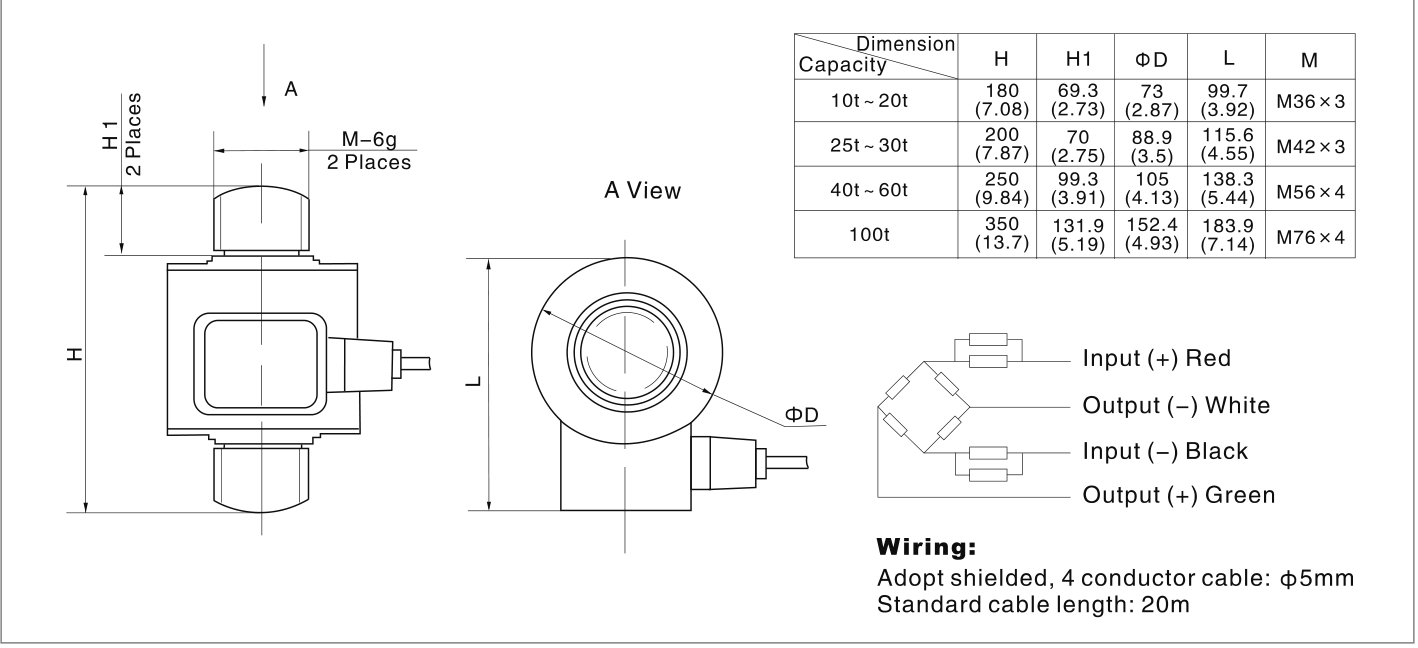

| Dimensions | Ø105 × 250 mm |
| Material | Stainless steel, hermetically welded |
| Protection | IP68 |
| Signal | Analog |
| Input resistance | 700 ± 7 Ω |
| Output resistance | 703 ± 4 Ω |
| Insulation resistance | ≥ 5000 MΩ @ 50 VDC |
| Zero balance | 1.0 %FS |
| Compensated temperature | −10 to +40 °C |
| Operating temperature | −35 to +65 °C |
| Recommended excitation | 5 to 12 VDC |
| Maximum excitation | 18 VDC |
| Safe overload | 150 %FS |
| Ultimate overload | 300 %FS |
| Cable | 4-conductor shielded, 20 m, 7.7 mm diameter |
| Wiring | Input (+) red, Output (−) white, Input (−) black, Output (+) green |
| Accuracy class | C2 |
| Maximum verification intervals (nmax) | 2000 |
| Minimum verification interval (vmin) | Emax/5000 |
| Combined error | ≤ ±0.030 %FS |
| Creep (30 min) | ≤ ±0.024 %FS |
| Temperature effect on sensitivity | ≤ ±0.017 %FS/10 °C |
| Temperature effect on zero | ≤ ±0.023 %FS/10 °C |
| Mounting | 2 × M56 × 4-6g threaded studs |
| Product | Order code |
|---|---|
| Zemic BM14D 50 t Compression Load Cell (BM14D-C2-50t-20B) | 24267 |
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305| Capacity | Manufacturer part number | SKU | Price |
|---|---|---|---|
| 10 t | BM14D-C2-10t-20B | 24262 | $1,940.00 |
| 20 t | BM14D-C2-20t-20B | 24263 | $1,940.00 |
| 25 t | BM14D-C2-25t-20B | 24264 | $2,530.00 |
| 30 t | BM14D-C2-30t-20B | 24265 | $2,530.00 |
| 40 t | BM14D-C2-40t-20B | 24266 | $3,542.00 |
| 100 t | BM14D-C2-100t-20B | 24268 | $5,735.00 |

| Signal | Analog |
|---|---|
| Protection class | IP68 |
| Material | Stainless Steel |
| Combined error | ≤ ±0.030 %FS (C2) |
| Compensated temp range | −10 to +40 °C |
| Creep error 20mins | ≤ ±0.024 %FS / 30 min (C2) |
| Input impedance | 700 ± 7 Ω |
| Insulation resistance | ≥ 5000 MΩ @ 50 VDC |
| Internal Battery | -- |
| Maximum excitation | 18 VDC |
| Maximum number of intervals | 2000 nLC |
| Maximum safe overload | 150 %FS |
| Operating temp range | −35 to +65 °C |
| Output impedance | 703 ± 4 Ω |
| Rated capacity | 50 t |
| Rated output | 1.5 ± 0.003 mV/V |
| Recommended excitation | 5 ~ 12 VDC |
| Ultimate central overload | 300 %FS |
| Zero balance | 1.0 %FS |
| Manufacturer | Zemic |
| Accuracy | C2 |
| Number of Wires | 4 wires |
| Manufacturer's Part Number | BM14D-C2-50t-20B |
| Short name | BM14D-50t C2 Compression Load Cell |
| Hero chips | IP68; Stainless Steel; Analog signal; 4 wires |
